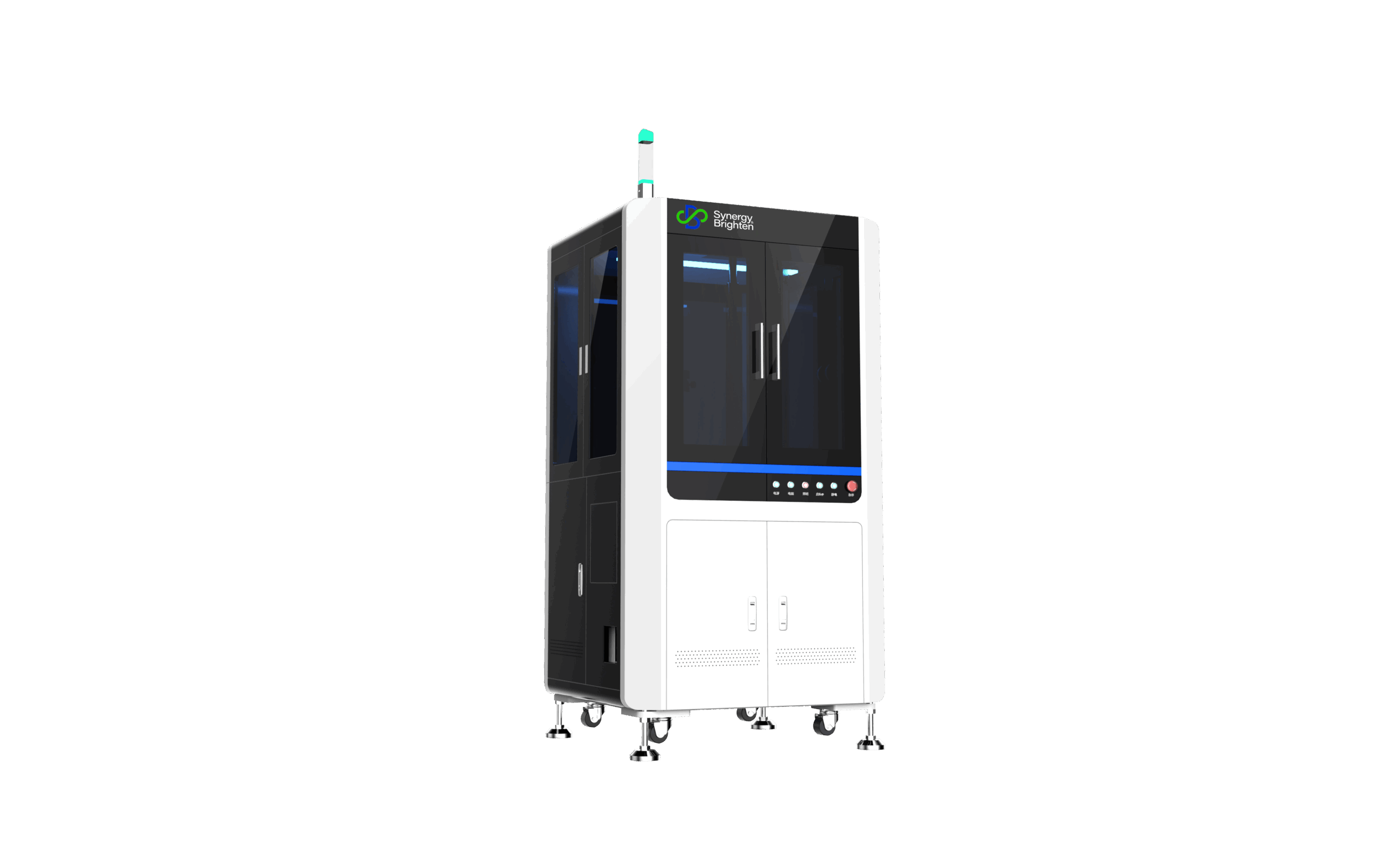

ZWC_yamada AI Multi-Sided Glass Disk Type Inspection Machine
This device rotates and conveys products on a glass disc while capturing images from multiple angles. Using deep learning-based AI algorithms, it automatically detects and classifies all defects without missing any.
Key Features
- The multi-angle imaging structure enables simultaneous inspection of scratches, foreign objects, chips, and other defects from various angles.
- Equipped with AI algorithms, it minimizes misclassification rates to achieve zero-defect inspection.
- Utilizes an open deep learning platform, enabling flexible retraining and accuracy improvement.
- Incorporates imported DD (Direct Drive) motors to support high-speed, high-precision transport.
- Classification results and history of defective products are stored as data, supporting traceability management.
3C Electronic Products
Precision Mechanical Components
Metal Components
| Model Number | JCHX-2 |
| Primary Inspection Targets | Chip resistors, capacitors, transistors, LED chip bulbs, resistor matrix ceramics, cores, etc. |
| Primary Detectable Items | Dimensions, scratches, damage, discoloration, chips, dark cracks, etc. |
| Inspection Size Range | 20x20x20mm |
| Inspection Speed | 13000pcs/min |
| Equipment Dimensions | 1000×1000×1900mm |
